Clean-Tec 330
Detailed Description

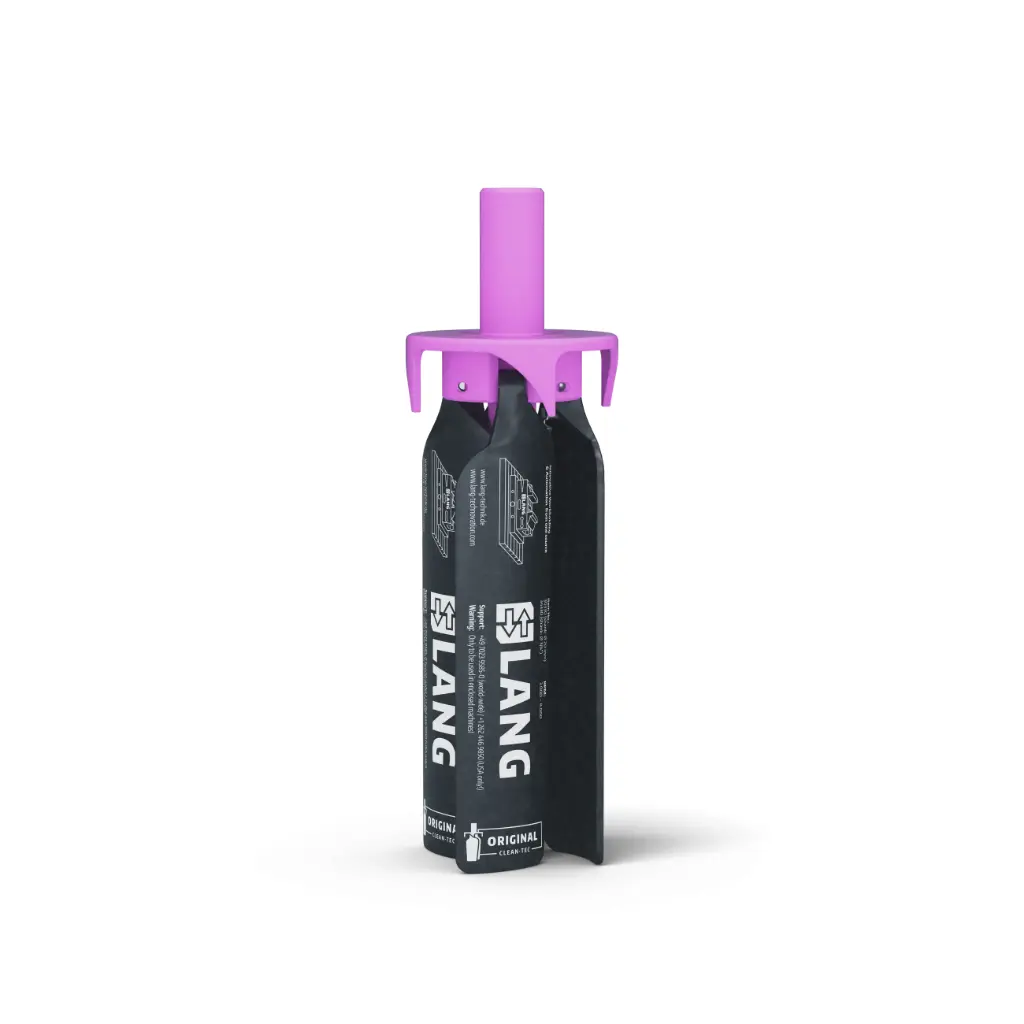

The largest version of the Clean•Tec chip fan, whose body can be clamped in any standard Ø 20 mm tool holder, is particularly suitable for cleaning large areas and is, therefore, more likely to be used in larger machines. By controlling the speed of the machine spindle, it opens and closes its blades and efficiently frees workpieces and fixtures from chips and cooling.
Socket diameter: 20 mm (0.79")
Socket length: 42 mm (1.65")
Wing length: 166 mm (6.54")
Total length: 208 mm (8.19")
Diameter with closed wings: 68 mm (2.68")
Diameter with open wings: 330 mm (12.99")
RPM range: 3000 - 8000 U/min
Application: large-scale
Packaging Unit: 1 Piece
Weight: 0.21 kg (0.46 lbs)
Material: Plastic
